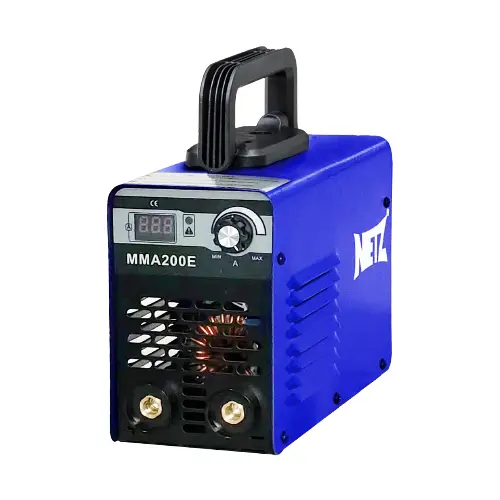

- Model: MMA 200E
- Invertor Technology: IGBT
- Net Weight: 2.5 kg
- Machine Dimension: 268 x 103 x 160mm ±
- MMA 200E portable welding continues to incorporate advanced features that make welding simple and easier.
Key Features:
- Portable stick welder
- More user-friendly
- Ideal for welding of carbon steels, low-alloy steel, and stainless steels
- Single board welder
- Small size, light weight, simple operation
- 10 – 25mm sockets
- Overheat and overcurrent self-protection function
Standard Accessories:
- Earth Clamp with 1.5m cable 200A
- Electrode Holder with 1.5m cable 200A
Technical Data:
- Input Voltage (V): AC220V-50/60Hz
- Input Power (KW): 7.2
- Rated Input Current (A): 32.8
- Output Current Range (A): 30 ~ 160
- Rated Output Voltage (V): 26.4
- No-load Loss (W): 40
- No-load Voltage (V): 59
- Duty Cycle (%): 60
- Power / Insulation Grade: IP21 S/F
- Welding Process: MMA
- Recommended Electrode Diameter: 2.5 / 3.2mm
- Gas: Unnecessary
- Packing Dimension: 244 x 152 x 95mm ±
Optional Accessories:
- Welding Shield
- Welding Glove
- Slag Remover
