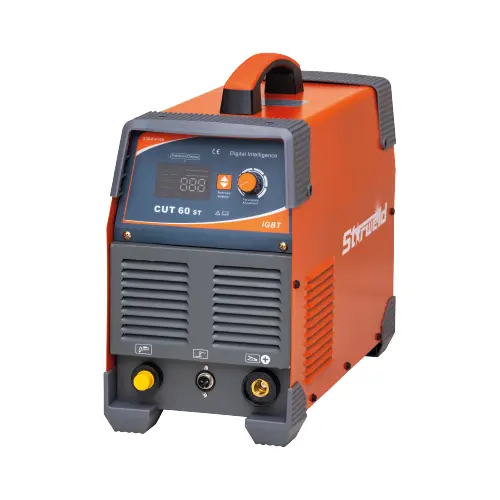

NIETZ Air Plasma Series Cutting Machine (CUT 60ST)

• Model: CUT 60ST
• Invertor Technology: IGBT
• Net Weight: 10.5 kg
• Machine Dimension: 455 x 203 x 390mm ±
• CUT 60ST air plasma cutting machine is a digital smart cutter with dual voltage capability (180-250V single phase and 300-440V three phase). This flexibility allows use in various locations, accommodating both stable and unstable power supplies.

Key Features:

• Digital smart welder
• Multifunction digital display
• Post-flow control
• PWM control system
• Max. current 60A

Standard Accessories:

• Earth Clamp with 3m cable 300A
• Cutting Torch (8m AG 60)
• Air Regulator
• Gas Hose
• 2pcs Hose Clamp

Technical Data:

• Input Voltage (V): AC220V/415V-50/60Hz
• Input Power (KW): 10.7 / 7.9
• Rated Input Current (A): 48.5 / 12
• Output Current Range (A): 20 ~ 60
• Rated Output Voltage (V): 104
• No-load Loss (W): 60
• No-load Voltage (V): 239
• Duty Cycle (%): 60
• Power / Insulation Grade: IP21 S/F
• Welding Process: Air Plasma
• Recommended Electrode Dimension: 2.5 / 3.2mm
• Gas: Air (Air Compressor)
• Packing Dimension: 540 x 330 x 420mm ±

Optional Accessories:

• Welding Shield
• Welding Glove
